Type: Round bucket with single rim Model: 11-1000 BH 11.1 l

PiR
wymiary

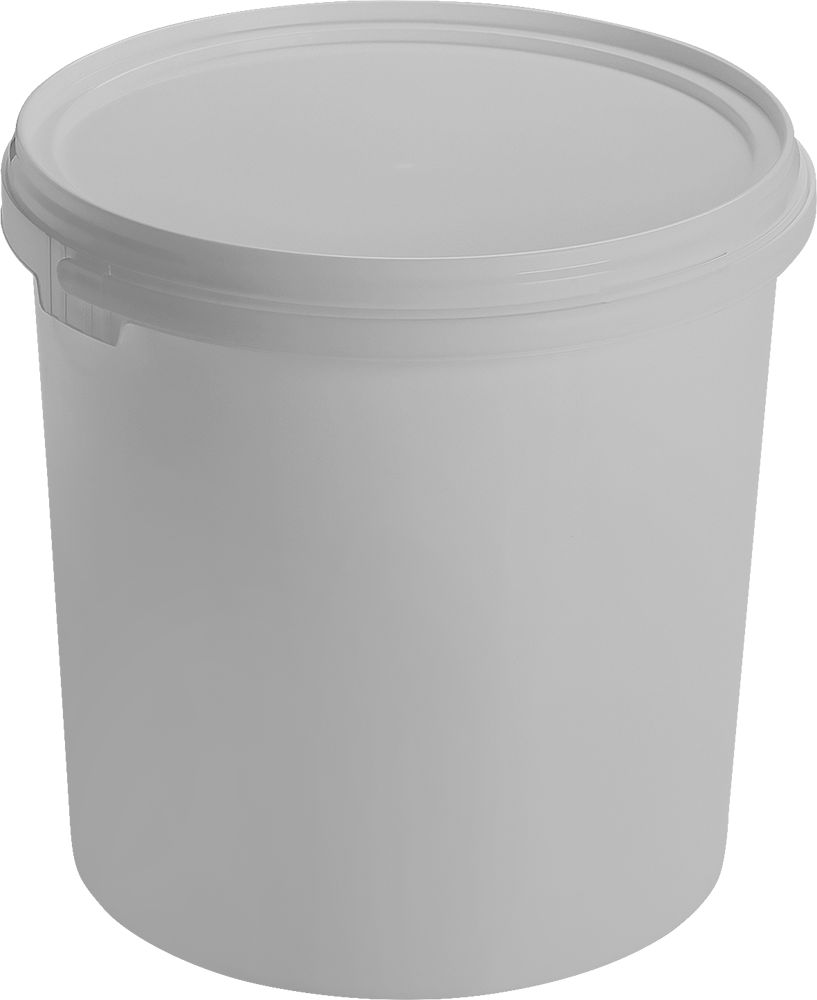

Round bucket with single rim 11-1000 BH

KONFIGURATOR 3D

DIMENSIONS / WEIGHT

Upper diameter (inside):
253,2 mm (b)
Upper diameter (with flange):
270 mm (a)
Bottom diameter (external):
228 mm (c)
Height:
263 mm (h)
Tolerances on dimensions:
+/- 2 mm
Total capacity (to edge):
11650 ml
Product weight (without handle):
270,3 g
Handle weight (plastic):
9,5 g
Handle weight (metal):
42 g (optional)
Weight tolerance:
+/- 5%

DECORATION

Dry offset
No
IML
Yes
Partial IML
No
Details included in the decoration templates.

LIDS

Name:
P-10Bis/4H
Foiling:
No
Weight:
60 g
IML:
Yes
Offset:
No
Height with the lid:
264,5 mm
Capacity under the lid:
11100 ml
Name:
P-10Bis/FH
Foiling:
Yes
Weight:
61,5 g
IML:
Yes
Offset:
No
Height with the lid:
269 mm
Capacity under the lid:
11650 ml

RAW MATERIAL / TRANSPORT AND WAREHOUSING

Transparent packaging
Other packaging
Maximum batch weight:
-
15.5 kg
Maximum load of the lower bucket:
-
29.0 kg
The values indicated apply to ambient temperatures below 23°C.
Paletization
Arrangement on a 1200x800 mm pallet
Palletization at delivery:
300, 432, 600 pcs (packaging: hood or bag)
  • The packaging is not intended for contact with food ingredients.
  • The base material of the bucket is polypropylene, with an admixture of recycled materials up to a maximum content of 60%.
  • The dyeing is not uniform – possible streaks and inclusions.
  • The packaging requires storage and transport testing in the environment of its intended use.
  • It is the responsibility of the customer to match the packaging with the target batch.
  • This guarantee is valid 12 months from date of delivery. During this time, the package should be used. All packages from a single pallet should be used immediately after unpacking.
  • Manufacturer is not responsible for container deformation because of stacking of single pallets or putting on them an extra load.
5 basic re-granulate colours
